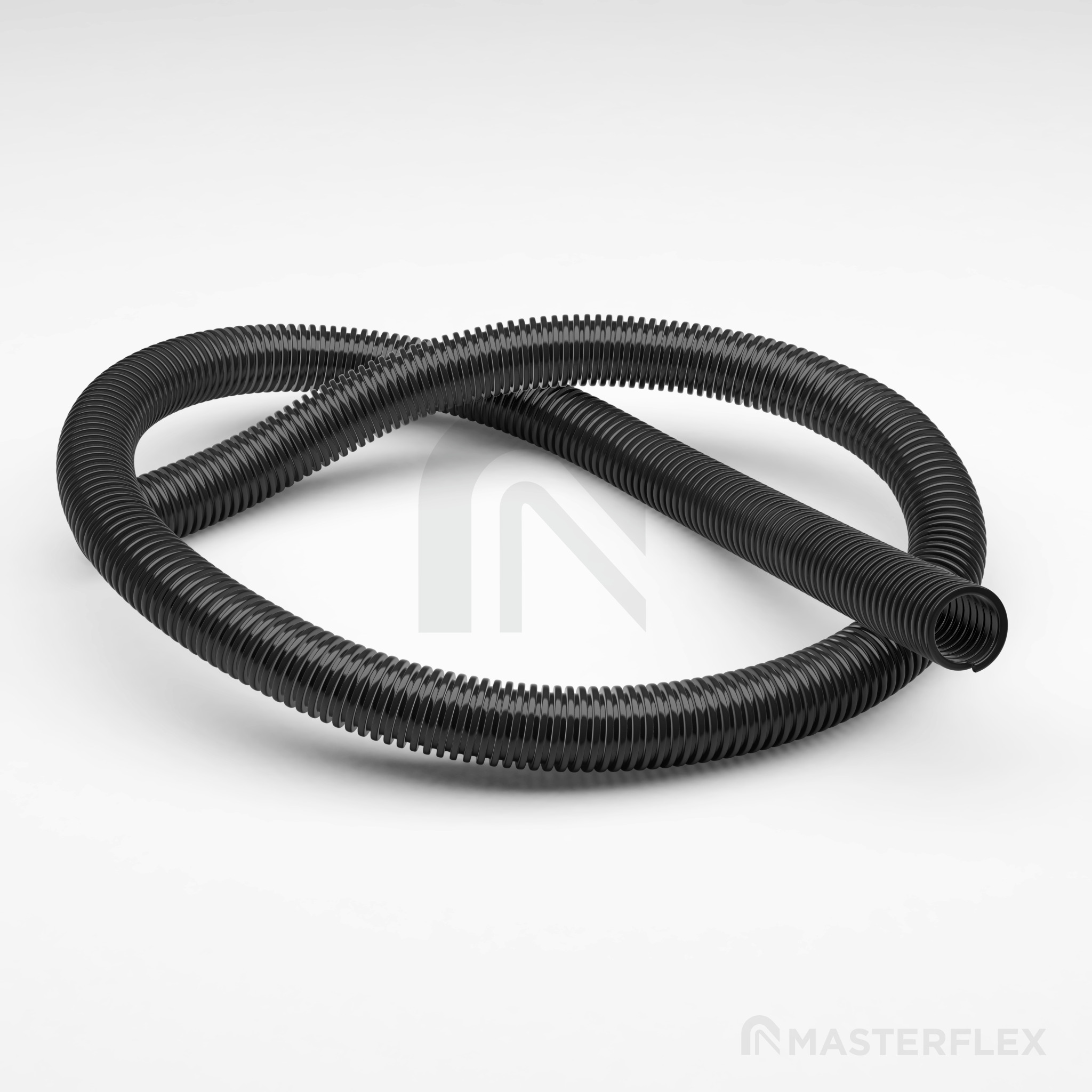

Master-VAC
Article master no: 000466
PE-EVA Suction Hose & Transport Hose, lightweight, crush-resistant
View product informationProduct configurator
Define parameters here and click button!
Product information
hydrolysis resistant
metal-free
microbe resistant
crush-proof
moderately flexible
light
moderately pressure resistant
Product data
Construction / Material

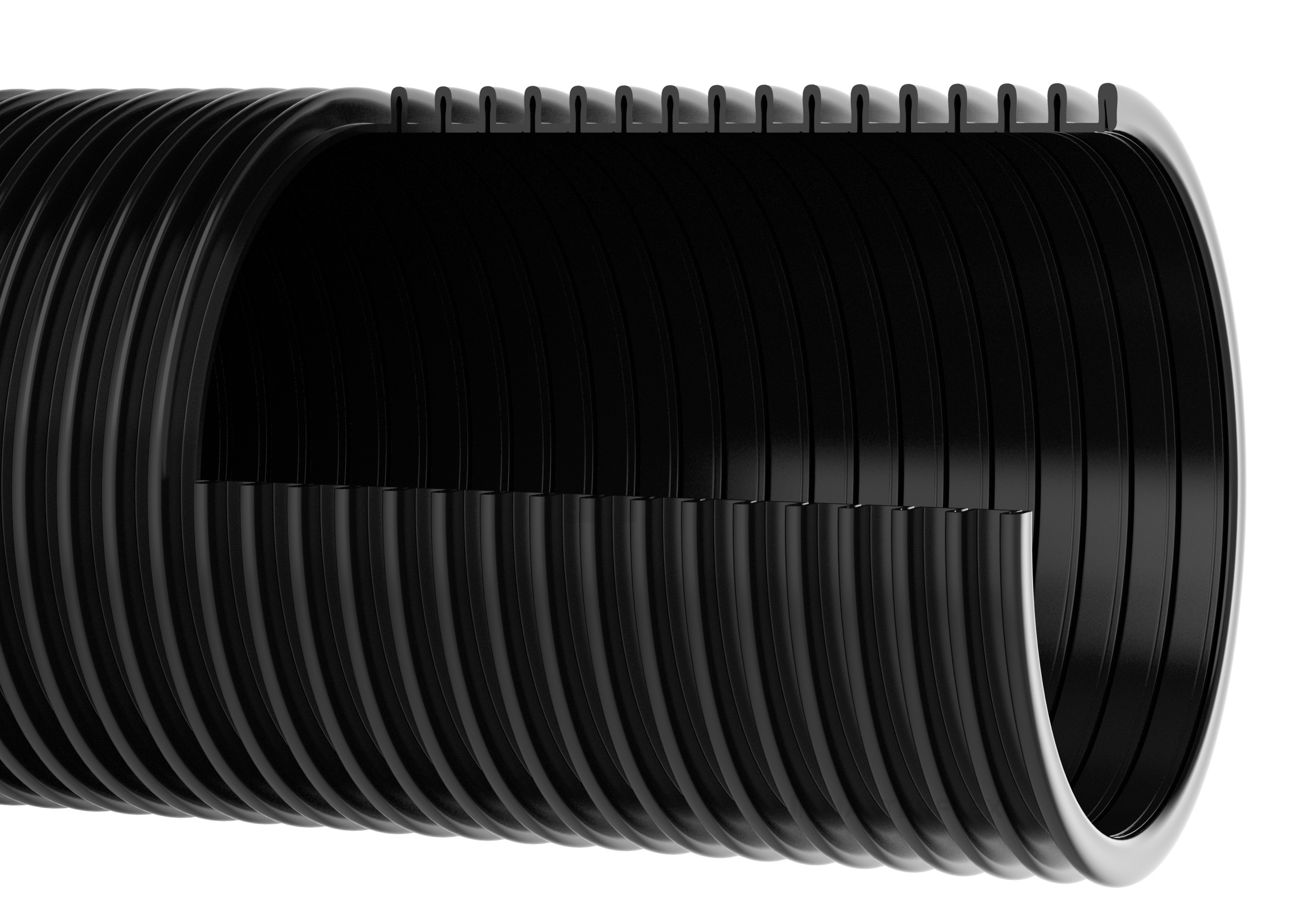

| Type of construction | extruded spiral hose |
| Material of the wall | PE-EVA Co-polymer |
Properties
| Specifications of the product | RoHS-compliant |
| Chemical Properties | good resistance to oil, good UV resistance, good resistance to alkaline solutions, good resistance to acids, good ozone resistance |
| Flexibility | moderately flexible |
| Physical Properties | airtight, watertight, buoyant (spec. weight 0.94) |
| Weight | light |
| Pressure Resistance | moderately pressure resistant |
| Colour | black |
Operating Temperature
| Temperature Range | -40 to 60 °C |
| short-term maximum temperature | peaks to 70 °C |
Delivery Information
| Delivery, type of production | various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock |
Application Areas
| Areas of application | Ventilation & Air-conditioning, Chemistry, Waste Disposal & Cleaning Technology |
Application areas
Supply variants
All data refer to a medium and ambient temperature of +20 °C.
| Extended Article Number | Nominal Size (DN) in mm | Bending radius* in mm | Weight in kg/m | Negative pressure in bar | Max. Production length in m | Stock Lengths in m | Length (standard lengths available for order) in m |
|---|---|---|---|---|---|---|---|
| 000466:25:x | 25 | 100 | 0.14 | 0.40 | 20.00 | / | 10 / 15 / 20 |
| Variant details | |||||||
| 000466:25:10,00 | 25 | 100 | 0.14 | 0.40 | 20.00 | / | 10 |
| 000466:25:15,00 | 25 | 100 | 0.14 | 0.40 | 20.00 | / | 15 |
| 000466:25:20,00 | 25 | 100 | 0.14 | 0.40 | 20.00 | / | 20 |
| 000466:28:x | 28 | 70 | 0.19 | 0.74 | 20.00 | 15 | 15 / 20 |
| Variant details | |||||||
| 000466:28:15,00 | 28 | 70 | 0.19 | 0.74 | 20.00 | 15 | 15 |
| 000466:28:20,00 | 28 | 70 | 0.19 | 0.74 | 20.00 | 15 | 20 |
| 000466:32:x | 32 | 70 | 0.22 | 0.49 | 30.00 | 15 | 15 / 20 / 30 |
| Variant details | |||||||
| 000466:32:15,00 | 32 | 70 | 0.22 | 0.49 | 30.00 | 15 | 15 |
| 000466:32:20,00 | 32 | 70 | 0.22 | 0.49 | 30.00 | 15 | 20 |
| 000466:32:30,00 | 32 | 70 | 0.22 | 0.49 | 30.00 | 15 | 30 |
| 000466:36:x | 36 | 75 | 0.27 | 0.49 | 20.00 | 15 | 15 / 20 |
| Variant details | |||||||
| 000466:36:15,00 | 36 | 75 | 0.27 | 0.49 | 20.00 | 15 | 15 |
| 000466:36:20,00 | 36 | 75 | 0.27 | 0.49 | 20.00 | 15 | 20 |
| 000466:32:30,00 | 36 | 75 | 0.27 | 0.49 | 20.00 | 15 | 30 |
| 000466:38:x | 38 | 80 | 0.29 | 0.49 | 30.00 | 15 | 15 / 20 / 30 |
| Variant details | |||||||
| 000466:38:15,00 | 38 | 80 | 0.29 | 0.49 | 30.00 | 15 | 15 |
| 000466:38:20,00 | 38 | 80 | 0.29 | 0.49 | 30.00 | 15 | 20 |
| 000466:38:30,00 | 38 | 80 | 0.29 | 0.49 | 30.00 | 15 | 30 |
| 000466:45:x | 45 | 90 | 0.37 | 0.49 | 20.00 | / | 15 / 20 |
| Variant details | |||||||
| 000466:45:15,00 | 45 | 90 | 0.37 | 0.49 | 20.00 | / | 15 |
| 000466:45:20,00 | 45 | 90 | 0.37 | 0.49 | 20.00 | / | 20 |
| 000466:50:x | 50 | 100 | 0.42 | 0.39 | 30.00 | 20 | 15 / 20 / 30 |
| Variant details | |||||||
| 000466:50:15,00 | 50 | 100 | 0.42 | 0.39 | 30.00 | 20 | 15 |
| 000466:50:20,00 | 50 | 100 | 0.42 | 0.39 | 30.00 | 20 | 20 |
| 000466:50:30,00 | 50 | 100 | 0.42 | 0.39 | 30.00 | 20 | 30 |
* Related to the inside of the hose bend | Subject to technical changes and color deviations.
Personalized guidance
Do you have any questions about the product, a customized solution or special areas of application for your needs? Feel free to contact us! We look forward to talking to you!
- Looking for information on the durability or installation of hoses? Take a look at our technical information.
- Certificates and declarations of conformity can be found on the "Quality" page.
- A list of all responsibilities and contact details can be found on our contact page.
Possible Connections

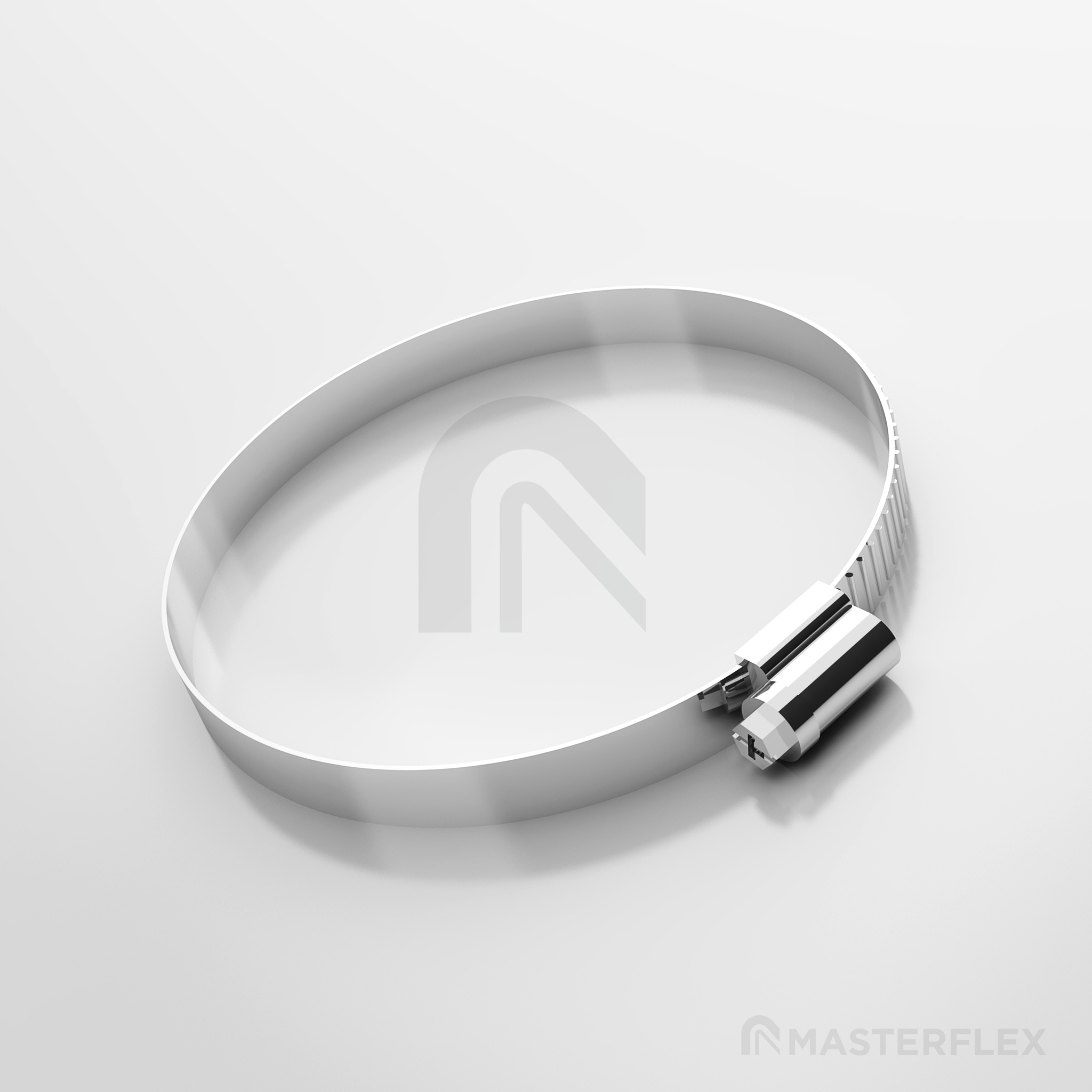

Hose Clamp with Worm-Gear, Steel quality W4, stainless steel 1.4301
Standard clamp for fastening light hose types to connecting pieces on mobile and stationary installations

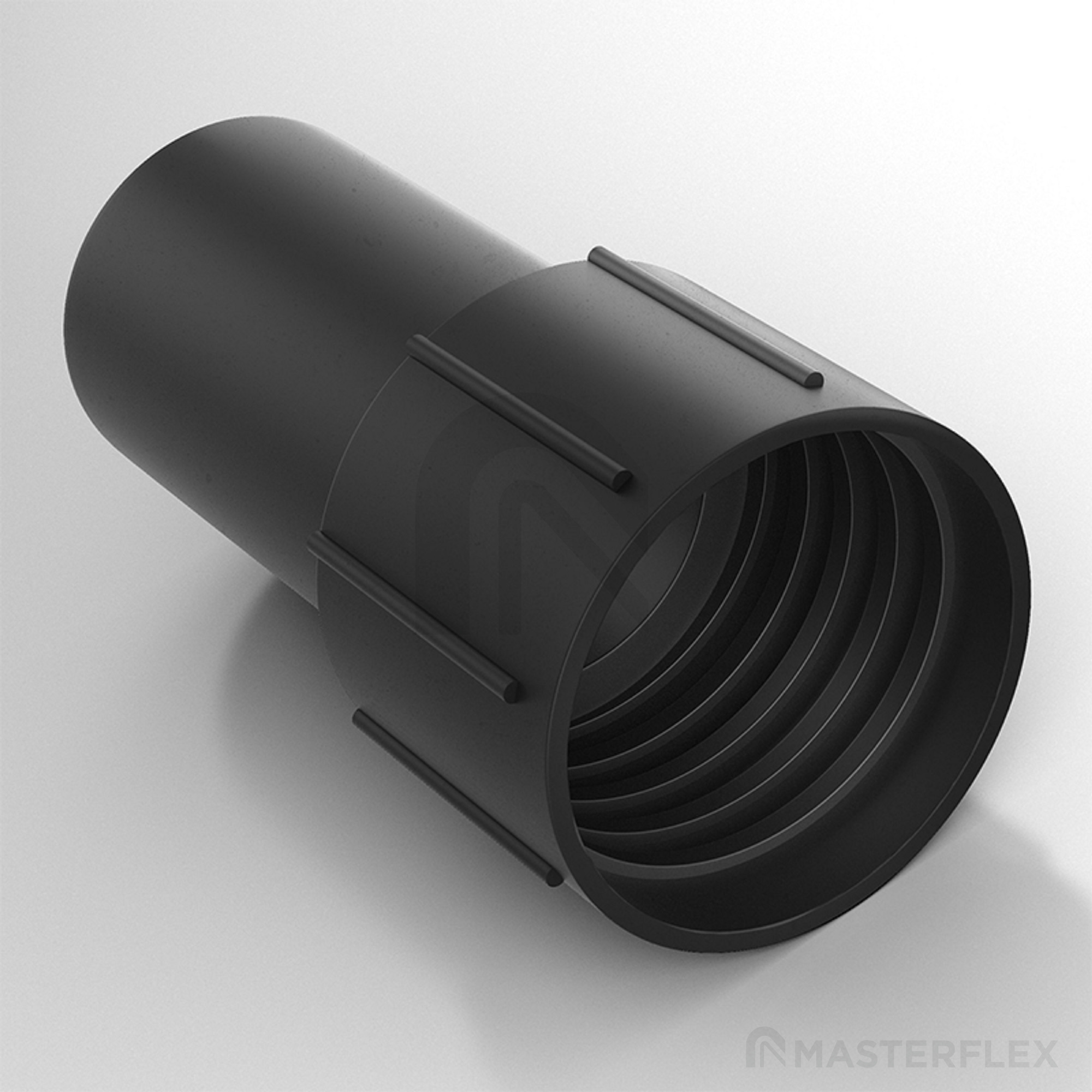

Cuff for Master-VAC
Special sleeve for connection of Master-VAC hoses, electrically conductive
